How to build your shelving/bookcase around a corner

Corner build guide

Watch the videos or follow the steps below to build a boxed corner.

Corner build videos

Building a boxed corner, ver 1

Building a boxed corner, ver 2

Step-by-step guide

Building a boxed corner (PDF)

Align two Uprights at 90° to each other (figure 1) and fasten with a couple of wood screws 15mm from the outer edge.

Tip: If the Upright is deep enough (to allow for a screwdriver), you can hide the screw by attaching it from the inside (figure 2). This must be done prior to inserting an Infill.

Note: You can join Uprights of different depths in the corner to make an arrangement more interesting.

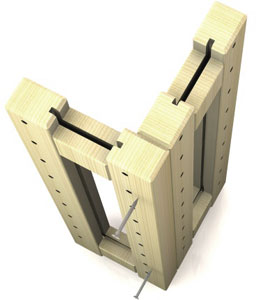

Figure 1
Figure 1

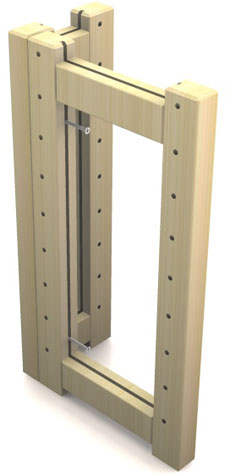

Figure 2
Figure 2

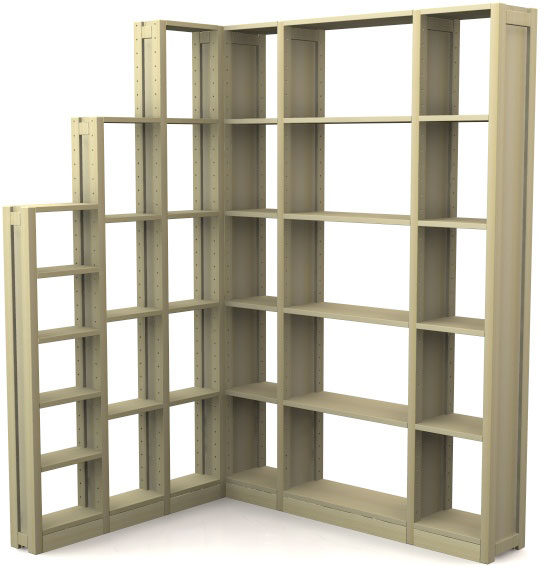

Corner build overview
